PM05S018A

high efficiency switching regulator

PM05S018A Features

* Efficiency up to 97%, Non-isolated

* SIP Package 11.5x7.5x10.2 mm

* Excellent Line/Loads Regulation

* Short Circuit Protection, Thermal Shutdown

* Low Ripple and Noise

* Operating Temperature range -40°C to +80°C

* Low Stand-by Current

* Wideinputrange (4.75V~32V)

PM05S018A Datasheet (411.50 KB)

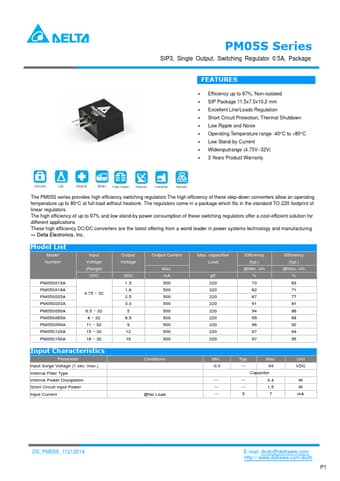

Preview of PM05S018A PDF

Datasheet Details

Part number:

PM05S018A

Manufacturer:

DELTA

File Size:

411.50 KB

Description:

High efficiency switching regulator.
