B340A - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Description

For use in low-voltage, high-frequency inverters, freewheeling, DCDC converters, and polarity protection applications.

Case: SMA

Case Material: Molded Plastic.

“Green” Molding Compound.

Moisture Sensitivity: Lev

Features

  • Guard Ring Die Construction for Transient Protection.
  • Ideally Suited for Automated Assembly.
  • Low Power Loss, High Efficiency.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Notes 3 & 4).
  • Qualified to AEC-Q101 Standards for High Reliability.

📥 Download Datasheet

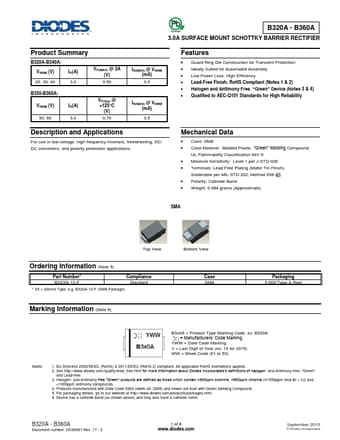

Datasheet preview – B340A

Datasheet Details

Part number B340A
Manufacturer DIODES
File Size 539.53 KB
Description 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet B340A Datasheet
Additional preview pages of the B340A datasheet.

📁 Similar Datasheet

  • B340A - 3.0A Surface Mount Schottky Barrier Rectifier (AXElite)
  • B340A - High Current Density Surface Mount Schottky Rectifier (Vishay)
  • B340A - SCHOTTKY RECTIFIER (SMC Diode)
  • B340A-M3 - Surface Mount Schottky Rectifier (Vishay)
  • B340AN - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B340 - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B340 - 3 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)
  • B340 - Schottky Barrier Rectifiers (AXElite)
  • B340B - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B340B - 3.0A Surface Mount Schottky Barrier Rectifier (AXElite)
Other Datasheets by DIODES
  • B340AQ - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • B340AX - 3A TRENCH SCHOTTKY BARRIER RECTIFIER
  • B340AXF - 3A TRENCH SCHOTTKY BARRIER RECTIFIER
  • B340AXS - 3A TRENCH SCHOTTKY BARRIER RECTIFIER
  • B340BQ - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • B340Q - SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
B320A - B360A Green 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Product Summary B320A-B340A: VRRM (V) IO(A) 20, 30, 40 3.0 VF(MAX) @ 3A (V) 0.50 B350-B360A: VRRM (V) 50, 60 IO(A) 3.0 VF(typ) @ +125°C (V) 0.70 IR(MAX) @ VRRM (mA) 0.5 IR(MAX) @ VRRM (mA) 0.5 Features  Guard Ring Die Construction for Transient Protection  Ideally Suited for Automated Assembly  Low Power Loss, High Efficiency  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Notes 3 & 4)  Qualified to AEC-Q101 Standards for High Reliability Description and Applications For use in low-voltage, high-frequency inverters, freewheeling, DCDC converters, and polarity protection applications. Mechanical Data  Case: SMA  Case Material: Molded Plastic.
