* Guard Ring Die Construction for Transient Protection
* Ideally Suited for Automated Assembly
* Low Power Loss, High Efficiency
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3 )
* Qualified to AEC-Q101 Standards for High R
B340AQ
477.59 KB

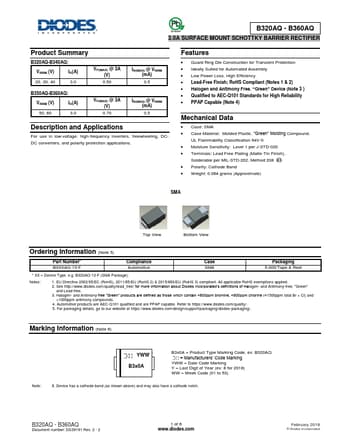

3.0a surface mount schottky barrier rectifier.
B320AQ - B360AQ
Green
3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B320AQ-B340AQ:
VRRM (V)
IO(A)
20, 30, 40
3.0
VF(MAX) @ 3A (.
