B340AXS - 3A TRENCH SCHOTTKY BARRIER RECTIFIER

Datasheet Summary

Description

For use in low-voltage, high-frequency inverters, freewheeling, DCDC converters, and polarity applications.

SMPS AC-DC DC-DC Converter Freewheeling Diodes Reverse Polarity Protection Blocking Diodes Low Leakage Current Soft, Fast Swit

Features

  • VRRM (V) 40 IO (A) 3 VF(MAX) (V) 0.50 IR(MAX) (µA) 200.

📥 Download Datasheet

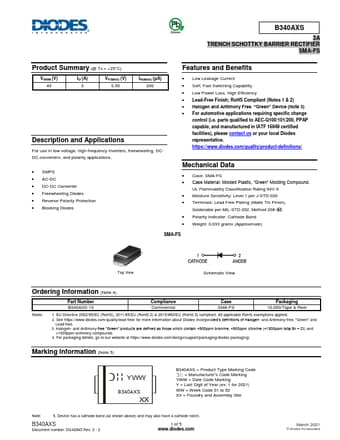

Datasheet preview – B340AXS

Datasheet Details

Part number B340AXS
Manufacturer DIODES
File Size 448.34 KB
Description 3A TRENCH SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet B340AXS Datasheet
Additional preview pages of the B340AXS datasheet.

📁 Similar Datasheet

  • B340A - 3.0A Surface Mount Schottky Barrier Rectifier (AXElite)
  • B340A - High Current Density Surface Mount Schottky Rectifier (Vishay)
  • B340A - SCHOTTKY RECTIFIER (SMC Diode)
  • B340A-M3 - Surface Mount Schottky Rectifier (Vishay)
  • B340AN - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B340 - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B340 - 3 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)
  • B340 - Schottky Barrier Rectifiers (AXElite)
  • B340B - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B340B - 3.0A Surface Mount Schottky Barrier Rectifier (AXElite)
Other Datasheets by DIODES
  • B340AX - 3A TRENCH SCHOTTKY BARRIER RECTIFIER
  • B340AXF - 3A TRENCH SCHOTTKY BARRIER RECTIFIER
  • B340A - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • B340AQ - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • B340BQ - 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
  • B340Q - SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text
ADVA NECEWDPIRNOFDOURCMTATION B340AXS Green 3A TRENCH SCHOTTKY BARRIER RECTIFIER SMA-FS Product Summary (@ TA = +25°C) Features and Benefits VRRM (V) 40 IO (A) 3 VF(MAX) (V) 0.50 IR(MAX) (µA) 200 Description and Applications For use in low-voltage, high-frequency inverters, freewheeling, DCDC converters, and polarity applications.  SMPS  AC-DC  DC-DC Converter  Freewheeling Diodes  Reverse Polarity Protection  Blocking Diodes  Low Leakage Current  Soft, Fast Switching Capability  Low Power Loss, High Efficiency  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  For automotive applications requiring specific change control (i.e.
