BAS40W-06Q - SURFACE MOUNT SCHOTTKY BARRIER DIODE

DIODES

The BAS40W-06Q by DIODES is a SURFACE MOUNT SCHOTTKY BARRIER DIODE. Below is the official datasheet preview.

📥 Download Datasheet

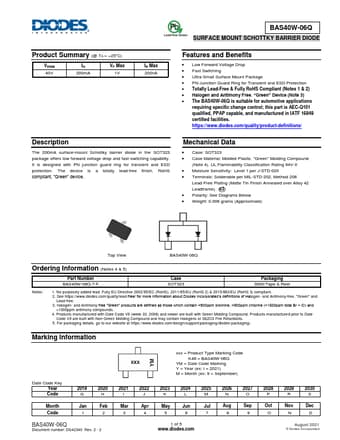

BAS40W-06Q SURFACE MOUNT SCHOTTKY BARRIER DIODE by DIODES - Datasheet Preview — Official preview page of the **BAS40W-06Q** SURFACE MOUNT SCHOTTKY BARRIER DIODE datasheet (DIODES).

Datasheet Details

Part number	BAS40W-06Q
Manufacturer	DIODES
File Size	633.72 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	BAS40W-06Q-DIODES.pdf
Additional preview pages of the BAS40W-06Q datasheet.

BAS40W-06Q Product details

Description

The 200mA surface-mount Schottky barrier diode in the SOT323 package offers low forward voltage drop and fast-switching capability. Case: SOT323 Case Material: Molded Plastic, "Green" Molding Compound (Note 4).UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals

Features

Low Forward Voltage Drop.
Fast Switching.
Ultra-Small Surface Mount Package.
PN Junction Guard Ring for Transient and ESD Protection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
The BAS40W-06Q is suitable for automotive.
