BAS40WS3 - Two Terminals Schottky Barrier Diode

Product Overview

TAITRON

Datasheet Details

Part number	BAS40WS3
Manufacturer	TAITRON
File Size	279.16 KB
Description	Two Terminals Schottky Barrier Diode
Datasheet	BAS40WS3 Datasheet

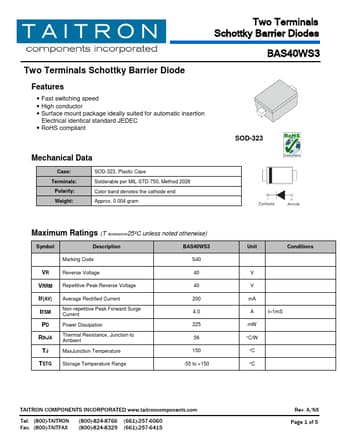

Additional preview pages of the BAS40WS3 datasheet.

Product details

Description

BAS40WS3 Marking Code S40 VR Reverse Voltage 40 VRRM Repetitive Peak Reverse Voltage 40 IF(AV) IFSM PD RthJA TJ Average Rectified Current Non-repetitive Peak Forward Surge Current Power Dissipation Thermal Resistance, Junction to Ambient MaxJunction Temperature 200 4.0 225 56 150 TSTG Storage Temperature Range -55 to +150 Unit Conditions V V mA A t=1mS mW °C/W °C °C TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)

Features

Fast switching speed.
High conductor.
Surface mount package ideally suited for automatic insertion Electrical identical standard JEDEC.
RoHS compliant SOD-323 Mechanical Data Case: Terminals: Polarity: Weight: SOD-323, Plastic Case Solderable per MIL-STD-750, Method 2026 Color band denotes the cathode end Approx. 0.004 gram Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol.
