BAS40W-05, BAS40W - Surface Mount Schottky Diodes

WEITRON

📥 Download Datasheet

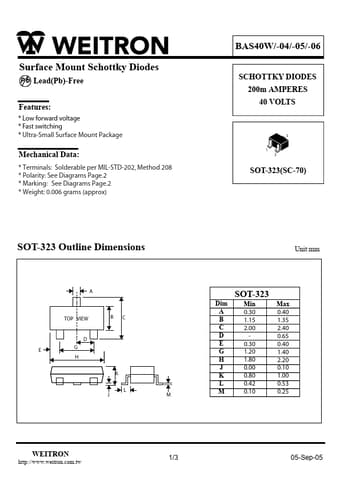

BAS40W-05 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAS40W-05, BAS40W. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BAS40W-05, BAS40W
Manufacturer	WEITRON
File Size	157.81 KB
Description	Surface Mount Schottky Diodes
Datasheet	BAS40W-WEITRON.pdf
Note	This datasheet PDF includes multiple part numbers: BAS40W-05, BAS40W. Please refer to the document for exact specifications by model.

BAS40W-05 Product details

Features

Low forward voltage.
Fast switching.
Ultra-Small Surface Mount Package Mechanical Data:.
Terminals: Solderable per MIL-STD-202, Method 208.
Polarity: See Diagrams Page.2.
Marking: See Diagrams Page.2.
Weight: 0.006 grams (approx) BAS40W/-04/-05/-06.
