DFLS260X Datasheet, Rectifier, DIODES

DFLS260X Features

  • Rectifier
  • Low Leakage Current
  • Soft, Fast Switching Capability
  • +150°C Operating Junction Temperature
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

PDF File Details

Part number:

DFLS260X

Manufacturer:

DIODES ↗

File Size:

368.79kb

Download:

📄 Datasheet

Description:

Trench schottky barrier rectifier. and Application For use in low-voltage, high-frequency inverters, freewheeling, DC-DC converters, and polarity applications.

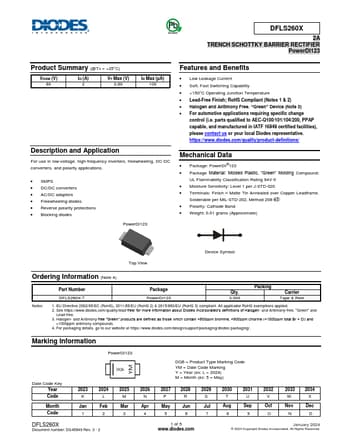

Datasheet Preview: DFLS260X 📥 Download PDF (368.79kb)
Page 2 of DFLS260X Page 3 of DFLS260X

DFLS260X Application

  • Applications
  • SMPS
  • DC/DC converters
  • AC/DC adaptors
  • Freewheeling diodes
  • Reverse polarity protectio
