DM5W22AQ Datasheet - DIODES

DM5W22AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against load dump surge according to ISO16750-2. Compliance with the following standards: * ISO 16750-2, Pulse A and Pulse B * ISO 7637-2 (Note 5) Pulse 1, Pulse 2a, Pulse 3a, Pulse 3b .

DM5W22AQ Features

* 3600W Peak Pulse Power Dissipation

* High Current Capability

* Low Reverse Current

* Low Thermal Resistance

* Low Power Loss and High Efficiency

* Excellent High Temperature Stability

* Meets ISO7637-2 Surge Capability

* Meets ISO16750-2 Surge Specification

* Le

DM5W22AQ Datasheet (582.03 KB)

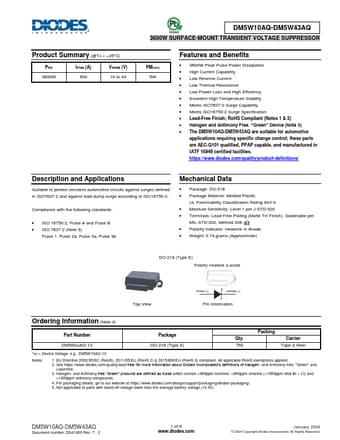

Preview of DM5W22AQ PDF

Datasheet Details

Part number:

DM5W22AQ

Manufacturer:

DIODES ↗

File Size:

582.03 KB

Description:

3600w surface-mount transient voltage suppressor.
