DM5W26AQ, DM5W10AQ, 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Product Summary (@TA = +25°C) PPK 3600W IFSM (A) 500 VRWM (V) 10 to 43 DM5W10AQ-DM5W43AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR PM(AV) .
and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against load dump surge according to ISO167.

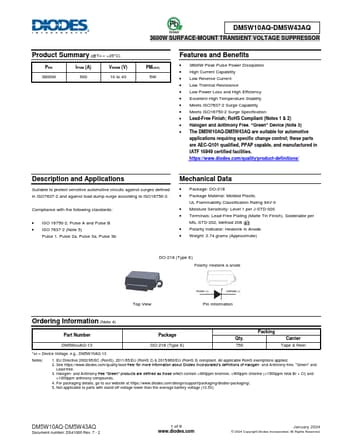

datasheet Preview Page 1 from Datasheet4u.com

DM5W10AQ-DIODES.pdf

DM5W26AQ Datasheet Preview — This datasheet PDF includes multiple part numbers: DM5W26AQ, DM5W10AQ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DM5W26AQ, DM5W10AQ

Manufacturer:

DIODES ↗

File Size:

582.03 KB

Description:

3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: DM5W26AQ, DM5W10AQ.
Please refer to the document for exact specifications by model.

Features

* 3600W Peak Pulse Power Dissipation
* High Current Capability
* Low Reverse Current
* Low Thermal Resistance
* Low Power Loss and High Efficiency
* Excellent High Temperature Stability
* Meets ISO7637-2 Surge Capability
* Meets ISO16750-2 Surge Specification
* Le
