* Rated to +175C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* Low RDS(ON)
* Minimizes Power Losses
* Low Qg
* Minimizes Switching L

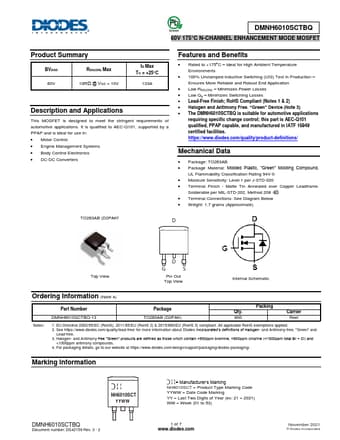

DMNH6010SCTBQ Datasheet (740.58 KB)
DMNH6010SCTBQ
740.58 KB
60v n-channel mosfet.
Green
DMNH6010SCTBQ
60V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS 60V
RDS(ON) Max 10mΩ @ VGS = 10V
ID Max TC = +25°C
133A
D.
