DMP2040USD Datasheet, Mosfet, DIODES

DMP2040USD Features

• Mosfet
• Dual P-Channel MOSFET
• Low On-Resistance
• Low Gate Threshold Voltage
• Low Input Capacitance
• Fast Switching Speed
• Low Input/Outpu

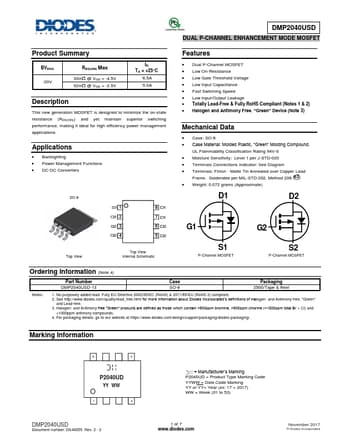

PDF File Details

Part number:

DMP2040USD

Manufacturer:

DIODES ↗

File Size:

379.20kb

Download:

📄 Datasheet

Description:

Dual p-channel mosfet. This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance,

DMP2040USD Application

• Applications Applications
• Backlighting
• Power Management Functions
• DC-DC Converters SO-8 Top View S1 D1 G1 D1 S2
