* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* High Conversion Efficiency
* Low RDS(ON)
* Minimizes On-State Losses
* Low Input Capacitance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS
DMT616MLSS Datasheet (468.53 KB)
DMT616MLSS
468.53 KB
60v n-channel mosfet.

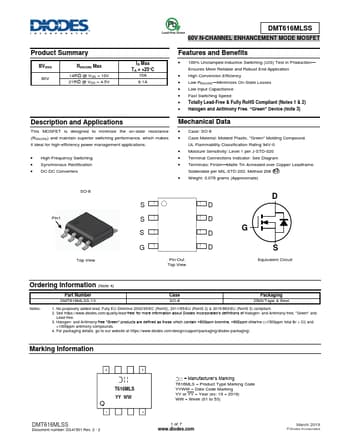

DMT616MLSS
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS 60V
RDS(ON) Max
14mΩ @ VGS = 10V 21mΩ @ VGS = 4.5V
ID Max TA = +25°C
10A 8..
