* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* Small Form Factor Thermally Efficient Package Enables Higher Density End Products
* Wettable Flank for Improved Optical Inspection
* Totally Lead-Free & Fully Ro

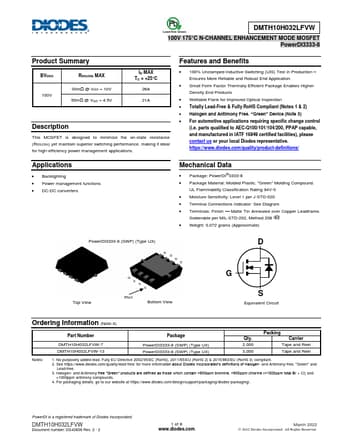

DMTH10H032LFVW Datasheet (833.63 KB)
DMTH10H032LFVW
833.63 KB
100v n-channel mosfet.
DMTH10H032LFVW
100V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8
Product Summary
BVDSS 100V
RDS(ON) MAX 30mΩ @ VGS = 10V 50mΩ @ VGS = 4.5V.
