* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* Low Input Capacitance
* Fast Switching Speed
* Wettable Flank for Improved Optica

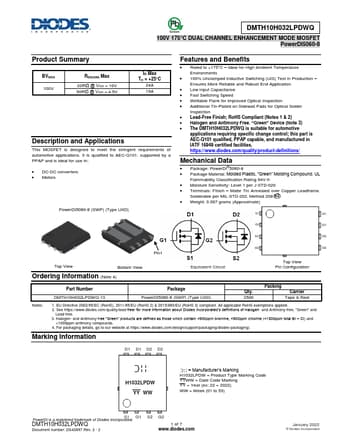

DMTH10H032LPDWQ Datasheet (588.52 KB)
DMTH10H032LPDWQ
588.52 KB
100v dual n-channel mosfet.
DMTH10H032LPDWQ
Green
100V 175°C DUAL CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8
Product Summary
BVDSS 100V
RDS(ON) Max
32mΩ @ VGS = 10V 50mΩ @ .
