DMTH6010LPSWQ

60V N-CHANNEL MOSFET

DMTH6010LPSWQ Features

* Rated to +175°C

* Ideal for High Ambient Temperature Environments

* 100% Unclamped Inductive Switching (UIS) Test in Production

* Ensures More Reliable and Robust End Application

* Low RDS(ON)

* Minimizes On-State Losses

* Low Input Capacitance

* Fast Switchi

DMTH6010LPSWQ General Description

and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in:
* Engine-management systems
* Body control electronics
* DC-DC converters Mechanical Data
* Package: Pow.

DMTH6010LPSWQ Datasheet (848.68 KB)

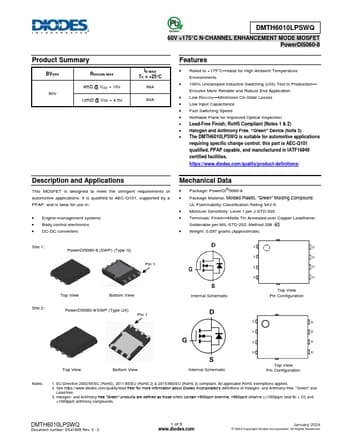

Preview of DMTH6010LPSWQ PDF

Datasheet Details

Part number:

DMTH6010LPSWQ

Manufacturer:

DIODES ↗

File Size:

848.68 KB

Description:

60v n-channel mosfet.
Product Summary BVDSS RDS(ON) MAX 8mΩ @ VGS = 10V 60V 12mΩ @ VGS = 4.5V Green DMTH6010LPSWQ 60V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI.
