DMTH6010SCT Datasheet - INCHANGE

DMTH6010SCT, N-Channel MOSFET

isc N-Channel MOSFET Transistor .
Designed for use in switch mode power supplies and general purpose applications.

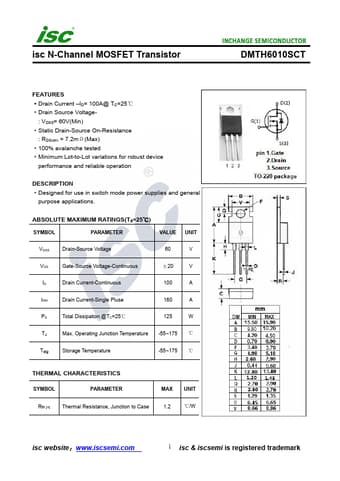

datasheet Preview Page 1 from Datasheet4u.com

DMTH6010SCT-INCHANGE.pdf

DMTH6010SCT Datasheet Preview — Preview of DMTH6010SCT PDF

Datasheet Details

Part number:

DMTH6010SCT

Manufacturer:

INCHANGE

File Size:

256.54 KB

Description:

N-Channel MOSFET

Features

* Drain Current
* ID= 100A@ TC=25℃
* Drain Source Voltage- : VDSS= 60V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 7.2mΩ(Max)
* 100% avalanche tested

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 60 V ±20 V ID Drain Current-Continuous 100 A IDM Drain Current-Single Pluse 160 A PD Total Dissipation @TC=25℃ 125 W TJ Max. Operating Junction Temperatu
