DMTH6004SCTB Datasheet, Mosfet, INCHANGE

DMTH6004SCTB Features

  • Mosfet
  • Drain Current
      –ID= 100A@ TC=25℃
  • Drain Source Voltage- : VDSS= 60V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 3.4mΩ(Max)
  • 100%

PDF File Details

Part number:

DMTH6004SCTB

Manufacturer:

INCHANGE

File Size:

250.05kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

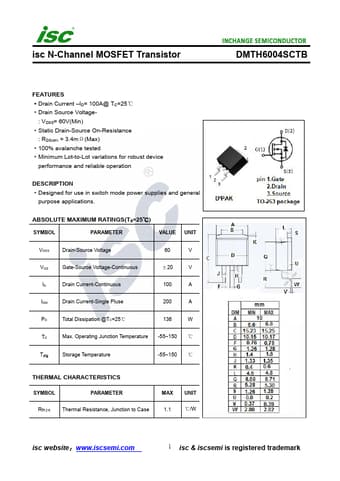

  • Datasheet Preview: DMTH6004SCTB 📥 Download PDF (250.05kb)
    Page 2 of DMTH6004SCTB

    DMTH6004SCTB Application

    • Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuo
