DMTH6004SCTBQ - N-Channel MOSFET

Diodes

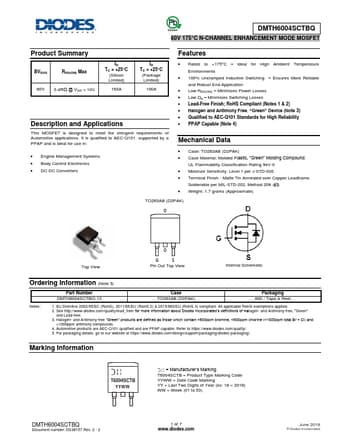

DMTH6004SCTBQ Datasheet Preview — Preview of DMTH6004SCTBQ PDF

Datasheet Details

Part number	DMTH6004SCTBQ
Manufacturer	DIODES ↗
File Size	585.57 KB
Description	N-Channel MOSFET
Datasheet	DMTH6004SCTBQ-Diodes.pdf

DMTH6004SCTBQ Product details

Description

and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications.It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in: Engine Management Systems Body Control Electronics DC-DC Converters Rated to +175°C Ideal for High Ambient Temperature Environments 100% Unclamped Inductive Switching Ensures More Reliable and Robust End Application Low RDS(ON) Minimizes Power Losses

Features

BVDSS RDS(ON) Max 60V 3.4mΩ @ VGS = 10V ID TC = +25°C (Silicon Limited) 163A ID TC = +25°C (Package Limited) 100A.
