DMTH6010LPDQ, 60V DUAL N-CHANNEL MOSFET

DMTH6010LPDQ 60V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 60V RDS(ON) max 11mΩ @ VGS = 10V 16mΩ @ VGS = 4.5V ID max TC =.
and Applications This MOSFET is designed to meet the stringent requirements of automotive applications.

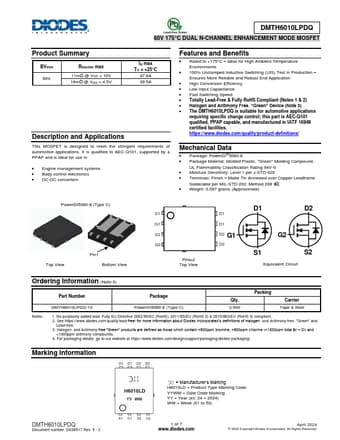

datasheet Preview Page 1 from Datasheet4u.com

DMTH6010LPDQ-Diodes.pdf

DMTH6010LPDQ Datasheet Preview — Preview of DMTH6010LPDQ PDF

Datasheet Details

Part number:

DMTH6010LPDQ

Manufacturer:

DIODES ↗

File Size:

422.53 KB

Description:

60V DUAL N-CHANNEL MOSFET

Features

* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching (UIS) Test in Production

Applications

* This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* Engine management systems
* Body control electronics
