* ID TC = +25°C 36.3A 31.2A
* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* High Conversion Efficiency
* Low RDS(ON)

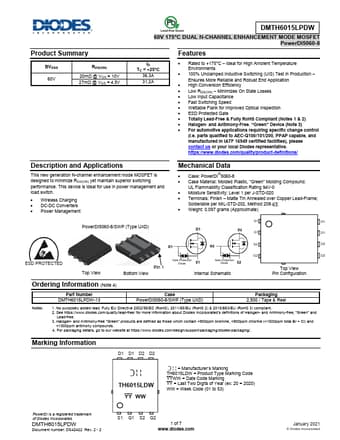

DMTH6015LPDW Datasheet (495.77 KB)
DMTH6015LPDW
495.77 KB
60v dual n-channel mosfet.
Product Summary
BVDSS 60V
RDS(ON)
20mΩ @ VGS = 10V 27mΩ @ VGS = 4.5V
DMTH6015LPDW
60V 175°C DUAL N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI5060-8
F.
