MMDT3904Q - 40V DUAL NPN SMALL SIGNAL TRANSISTOR

Product Overview

DIODES

📥 Download Datasheet

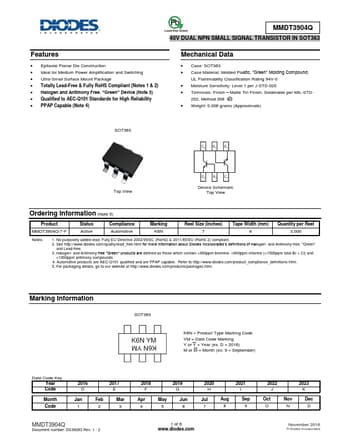

MMDT3904Q 40V DUAL NPN SMALL SIGNAL TRANSISTOR by DIODES - Datasheet Preview — Datasheet preview – MMDT3904Q

Datasheet Details

Part number	MMDT3904Q
Manufacturer	DIODES
File Size	313.17 KB
Description	40V DUAL NPN SMALL SIGNAL TRANSISTOR
Datasheet	MMDT3904Q Datasheet
Additional preview pages of the MMDT3904Q datasheet.

Product details

Features

Epitaxial Planar Die Construction.
Ideal for Medium Power Amplification and Switching.
Ultra-Small Surface Mount Package.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: SOT363.
Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0.
Moisture.
