MMDT3904 - Dual NPN Small Signal Surface Mount Transistor

MMDT3904 Description

Production specification Dual NPN Small Signal Surface Mount Transistor .

MMDT3904 Features

* Epitaxial planar die construction.
* Ideal for low power amplification and switching.
* Ultra-small surface mount package

MMDT3904 Applications

* General switching and amplification ORDERING INFORMATION Type No. MMDT3904 Marking K6N SOT-363 Package Code SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER VALUE VCBO collector-base voltage 60 VCEO collector-emitter voltage 40 VEBO emitter-base voltage

📥 Download Datasheet

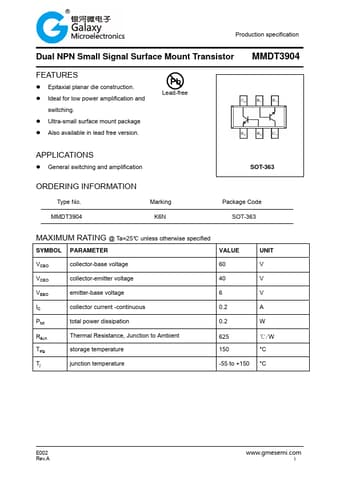

Preview of MMDT3904 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMDT3904
Manufacturer
GME
File Size
207.25 KB
Datasheet
MMDT3904-GME.pdf
Description
Dual NPN Small Signal Surface Mount Transistor
