MMDT3906 - Dual PNP Small Signal Surface Mount Transistor

MMDT3906 Description

Production specification Dual PNP Small Signal Surface Mount Transistor .

MMDT3906 Features

* Epitaxial planar die construction.
* Ideal for low power amplification and switching.
* Ultra-small surface mount package.

MMDT3906 Applications

* General switching and amplification. ORDERING INFORMATION Type No. MMDT3906 Marking K3N SOT-363 Package Code SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER VALUE VCBO collector-base voltage -40 VCEO collector-emitter voltage -40 VEBO emitter-base volt

📥 Download Datasheet

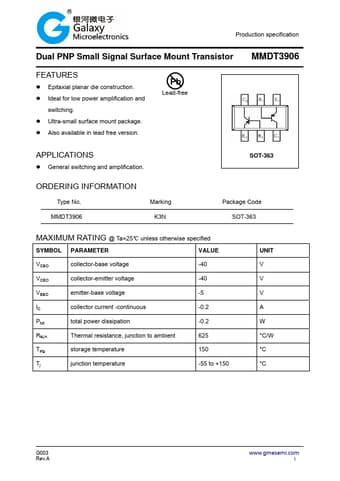

Preview of MMDT3906 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMDT3906
Manufacturer
GME
File Size
186.71 KB
Datasheet
MMDT3906-GME.pdf
Description
Dual PNP Small Signal Surface Mount Transistor
