MMDT2227 - Small Surface Mount Transistor

MMDT2227 Description

Production specification Small Surface Mount Transistor .

MMDT2227 Features

* Epitaxial planar die construction.
* Complementary Pair.
* Ultra-small surface mount package.

MMDT2227 Applications

* Ideal for low power amplification and switching . ORDERING INFORMATION Type No. Marking MMDT2227 K27 SOT-363 Package Code SOT-363 MAXIMUM RATING ,NPN 2222A Section @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO VCEO VEBO IC Collector-Base Voltage Collector-Em

📥 Download Datasheet

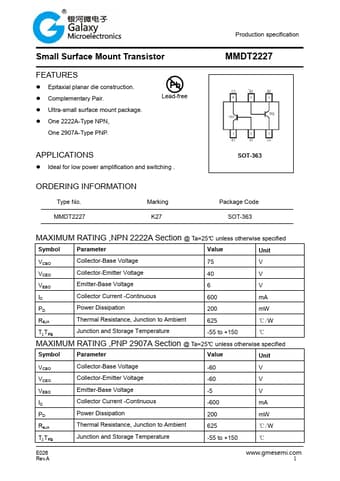

Preview of MMDT2227 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MMDT2227
Manufacturer
GME
File Size
241.40 KB
Datasheet
MMDT2227-GME.pdf
Description
Small Surface Mount Transistor
