MMDT1P434 - PNP Silicon Epitaxial Planar Transistor

MMDT1P434 Description

MMDT1P434 PNP Silicon Epitaxial Planar Transistor for switching and interface circuit and drive circuit applications Collector (Output) Base (Input) R.

MMDT1P434 Features

* With built-in bias resistors
* Simplify circuit design
* Reduce a quantity of parts and manufacturing process SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Pow

📥 Download Datasheet

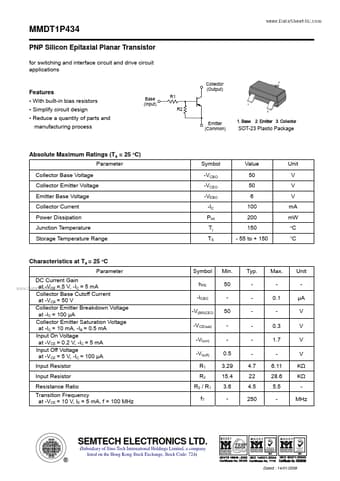

Preview of MMDT1P434 PDF

Datasheet Details

Part number
MMDT1P434
Manufacturer
SEMTECH
File Size
155.42 KB
Datasheet
MMDT1P434_SEMTECH.pdf
Description
PNP Silicon Epitaxial Planar Transistor
