MMDT2227 - COMPLEMENTARY NPN/PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes Incorporated

📥 Download Datasheet

MMDT2227 COMPLEMENTARY NPN/PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR by Diodes Incorporated - Datasheet Preview — Datasheet preview – MMDT2227

Datasheet Details

Part number	MMDT2227
Manufacturer	DIODES Incorporated
File Size	933.50 KB
Description	COMPLEMENTARY NPN/PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	MMDT2227 Datasheet

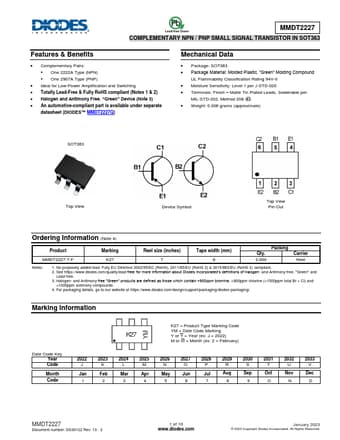

Additional preview pages of the MMDT2227 datasheet.

Product details

Features

& Benefits.
Complementary Pairs:.
One 2222A Type (NPN).
One 2907A Type (PNP).
Ideal for Low-Power Amplification and Switching.
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
An automotive-compliant part is available under separate datasheet (DIODES™ MMDT2227Q) Mechanical Data.
Package: SOT363.
Package Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 9.
