MMDT1N434 - NPN Silicon Epitaxial Planar Transistor

Product Overview

SEMTECH

Part number	MMDT1N434
Manufacturer	SEMTECH
File Size	155.42 KB
Description	NPN Silicon Epitaxial Planar Transistor
Datasheet	MMDT1N434 Datasheet

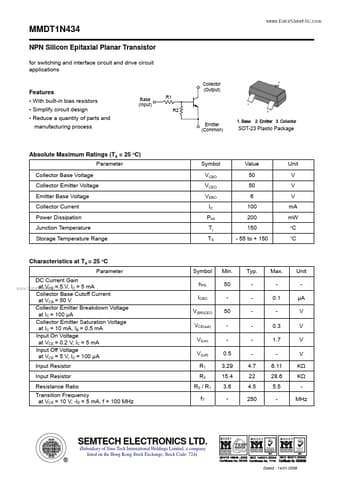

Additional preview pages of the MMDT1N434 datasheet.

With built-in bias resistors.
Simplify circuit design.
Reduce a quantity of parts and manufacturing process SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC Ptot Tj TS Value 50 50 6 100 200 150 - 55 to + 150 Unit V V V mA mW O C C O Characteristics at Ta = 25 OC P.
