PAM8908 - 60mW TRUE CAP FREE STEREO HEADPHONE AMPLIFIER

Product Overview

DIODES

📥 Download Datasheet

PAM8908 60mW TRUE CAP FREE STEREO HEADPHONE AMPLIFIER by DIODES - Datasheet Preview — Datasheet preview – PAM8908

Datasheet Details

Part number	PAM8908
Manufacturer	DIODES
File Size	1.10 MB
Description	60mW TRUE CAP FREE STEREO HEADPHONE AMPLIFIER
Datasheet	PAM8908 Datasheet
Additional preview pages of the PAM8908 datasheet.

Product details

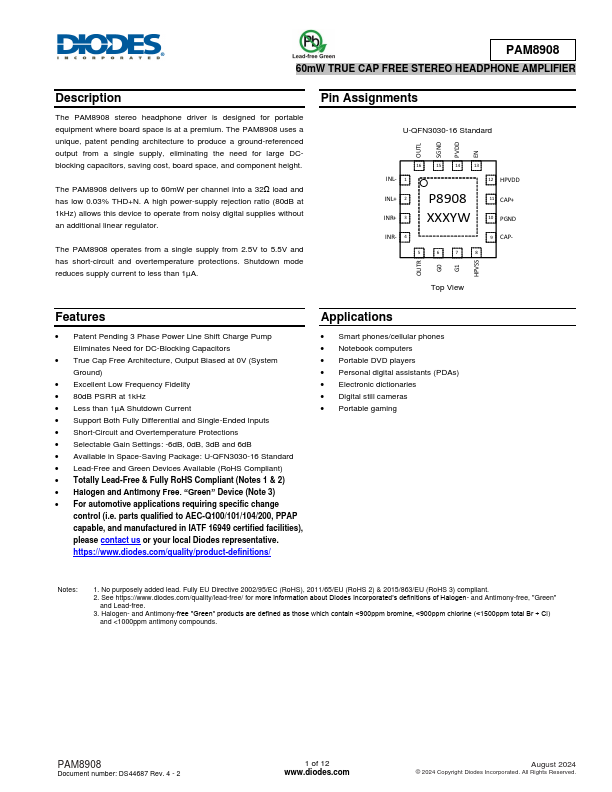

Description

The PAM8908 stereo headphone driver is designed for portable equipment where board space is at a premium.

Features

Patent Pending 3 Phase Power Line Shift Charge Pump Eliminates Need for DC-Blocking Capacitors.
True Cap Free Architecture, Output Biased at 0V (System Ground).
Excellent Low Frequency Fidelity.
80dB PSRR at 1kHz.
Less than 1µA Shutdown Current.
Support Both Fully Differential and Single-Ended Inputs.
Short-Circuit and Overtemperature Protections.
Selectable Gain Settings: -6dB, 0dB, 3dB and 6dB.
Available in Space.
