PAM8901 - 25mW TRUE CAP FREE STEREO HEADPHONE AMPLIFIER

PAM8901 Description

NOT RECOMMENDED FOR NEW DESIGN USE PAM8908 PAM8901 25mW TRUE CAP FREE STEREO HEADPHONE AMPLIFIER .
The PAM8901 stereo headphone driver is designed for portable equipment where board space is at a premium.

PAM8901 Features

* Patent Pending 3 phase power line shift
* charge pump Eliminates Need for DC-Blocking Capacitors
* TrueCapFree Architecture, Output Biased at 0V (System Ground)
* Excellent Low Frequency Fidelity
* 80dB PSRR at 1kHz
* Less than 1uA Shutdown current

PAM8901 Applications

* Smart Phones/Cellular Phones
* Notebook Computers
* Portable DVD Player
* Personal Digital Assistants (PDAs )
* Electronic Dictionaries
* Digital Still Cameras
* Portable Gaming Typical Applications Circuit Typical Applcation Configuration w

📥 Download Datasheet

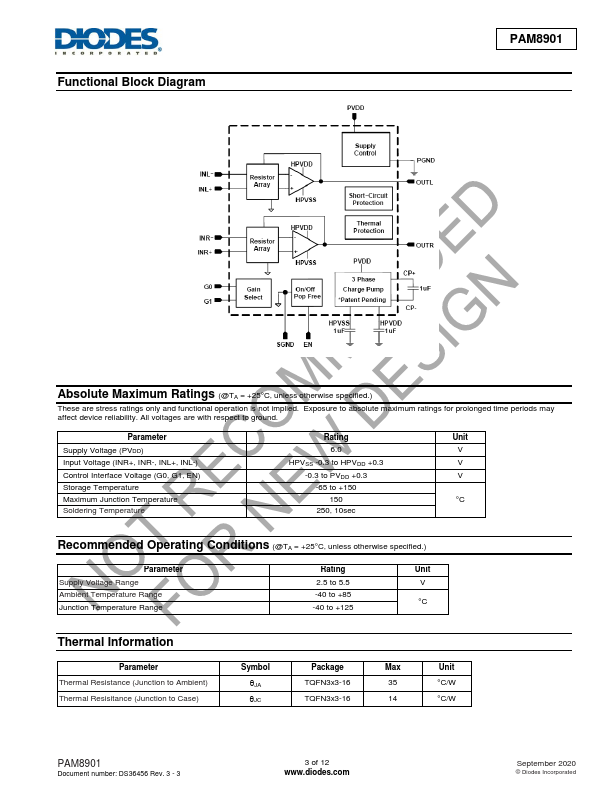

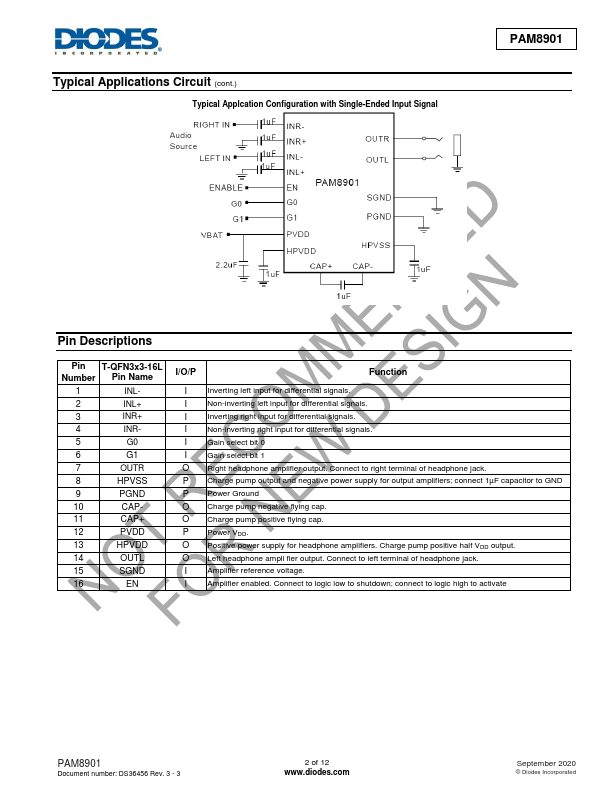

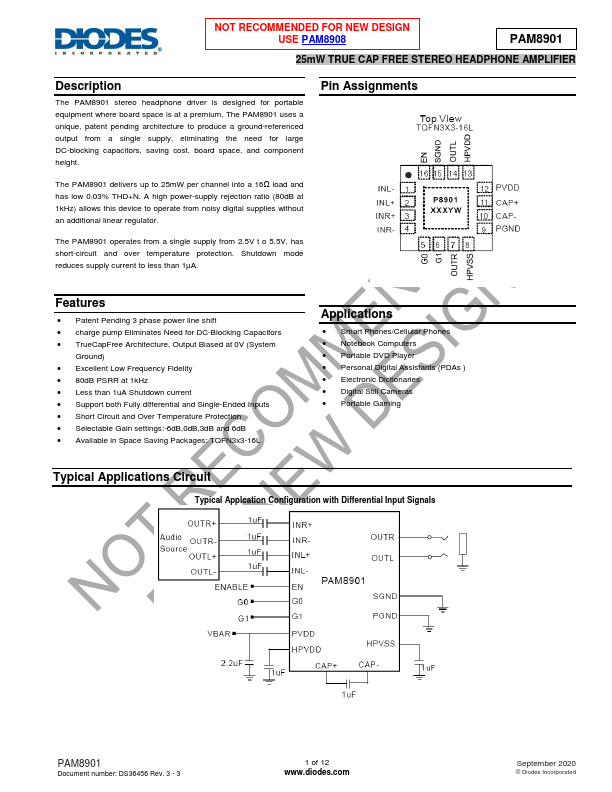

Preview of PAM8901 PDF
