PAM8006 Datasheet - Power Analog Microelectronics

PAM8006, 10W Stereo Class-D Audio Power Amplifier

PAM8006 10W Stereo Class-D Audio Power Amplifier Key .
The PAM8006 is a 10W (per channel) stereo class-D audio amplifier with fixed gain which offers low THD+N, low EMI, and good PSRR thus high-quality sou.

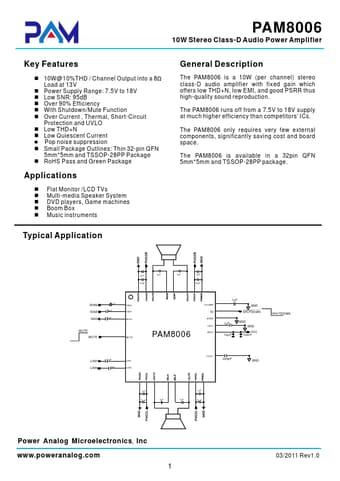

datasheet Preview Page 1 from Datasheet4u.com

PAM8006-PowerAnalogMicroelectronics.pdf

PAM8006 Datasheet Preview — Preview of PAM8006 PDF

Datasheet Details

Part number:

PAM8006

Manufacturer:

Power Analog Microelectronics

File Size:

705.73 KB

Description:

10W Stereo Class-D Audio Power Amplifier

Features

* n 10W@10%THD / Channel Output into a 8Ω Load at 13V n Power Supply Range: 7.5V to 18V n Low SNR: 95dB n Over 90% Efficiency n With Shutdown/Mute Function n Over Current , Thermal, Short-Circuit Protection and UVLO n Low THD+N n Low Quiescent Current n Pop noise suppression n Small Package Outlines:

Applications

* n n n n n Flat Monitor /LCD TVs Multi-media Speaker System DVD players, Game machines Boom Box Music instruments Typical Application 1μF 10 μF 1μF 1μF 1μF 10 μF 1μF RINN RINP GND 1μF 1μF 1μ F RINN RINP VCLAMP SD AGND GND SHUTDOWN SHUTDOWN AVDD 1μF V2P5 GND GND MUTE MUTE MUTE PAM8006
