PAM8007 Datasheet, amplifier equivalent, Diodes

PAM8007 Features

• Amplifier
• 3W Output at 10% THD with a 4Ω Load and 5V Power Supply
• Filterless, Low Quiescent Current and Low EMI
• Low THD+N
• 64-Step DC Volume Control

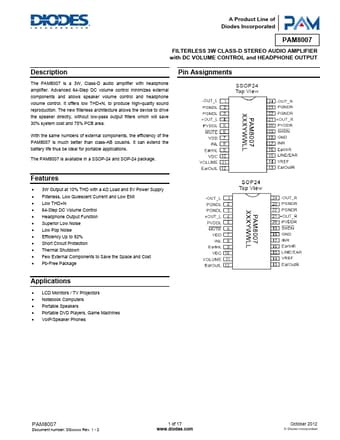

PDF File Details

Part number:

PAM8007

Manufacturer:

DIODES ↗

File Size:

555.45kb

Download:

📄 Datasheet

Description:

Filterless 3w class-d stereo audio amplifier. The PAM8007 is a 3W, Class-D audio amplifier with headphone amplifier. Advanced 64-Step DC volume control minimizes external componen

PAM8007 Application

• Applications The PAM8007 is available in a SSOP-24 and SOP-24 package. Pin Assignments Features
• 3W Output at 10% THD with a 4Ω Load and
