PAM8006A - 15W STEREO CLASS-D AUDIO POWER AMPLIFIER

PAM8006A Description

A Product Line of Diodes Incorporated PAM8006A 15W STEREO CLASS-D AUDIO POWER AMPLIFIER WITH POWER LIMIT .
The PAM8006A is a 15W (per channel) stereo Class-D audio amplifier which offers low THD+N (0.

PAM8006A Features

* 15W x2 into a 8Ω speaker
* Low Noise: -90dB
* Over 90% Efficiency
* With Shutdown/Mute Function
* Over Current ,OVP,UVLO,Thermal and Short-Circuit Protection
* Low THD+N
* Power Limit with Non-Clip
* Low Quiescent Current
* Pop Noise Suppression
* Small Pack

PAM8006A Applications

* Flat Monitor /LCD TVs
* Multi-Media Speaker System
* DVD Players, Game Machines
* Boom Box
* Music Instruments Typical Applications Circuit PAM8006A Document number: DSxxxxx Rev. 1 - 0 1 of 13 www. diodes. com April 2013 © Diodes Incorporated A Product Line of Diodes Incorpo

📥 Download Datasheet

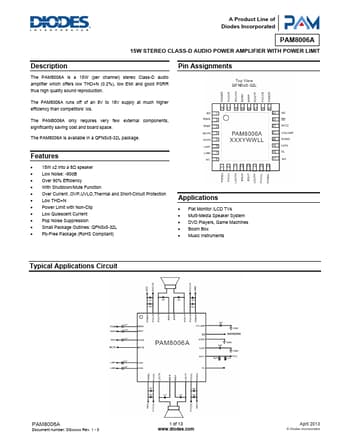

Preview of PAM8006A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM8006A
Manufacturer
DIODES ↗
File Size
540.74 KB
Datasheet
PAM8006A-Diodes.pdf
Description
15W STEREO CLASS-D AUDIO POWER AMPLIFIER
