PAM8001 - ANTI-SATURATION FILTERLESS 2W CLASS-D STEREO AMPLIFIER

PAM8001 Description

A Product Line of Diodes Incorporated PAM8001 ANTI-SATURATION FILTERLESS 2W CLASS-D STEREO AMPLIFIER WITH DC VOLUME CONTROL AND MAX OUTPUT POWER SETTI.
The PAM8001 is a 2W, class-D audio amplifier.

PAM8001 Features

* 2W Output at 1% THD with a 4Ω Load at 5V Power Supply
* Filterless, Low Quiescent Current and Low EMI
* Low THD+N
* 64-Step DC Volume Control
* Unique Anti-Saturation Function
* Adjustable Max Output Power with No Clipping
* Superior Low Noise
* Low Pop Noise

PAM8001 Applications

* The PAM8001 is available in SSOP-24L and QFN3

📥 Download Datasheet

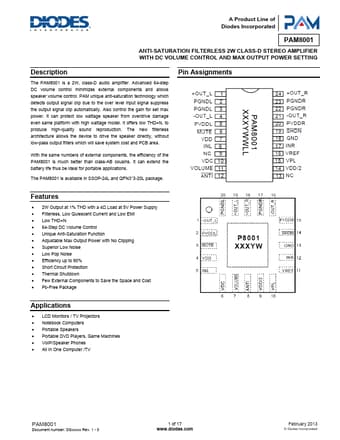

Preview of PAM8001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PAM8001
Manufacturer
DIODES ↗
File Size
723.43 KB
Datasheet
PAM8001-Diodes.pdf
Description
ANTI-SATURATION FILTERLESS 2W CLASS-D STEREO AMPLIFIER
