PAM8904 - 18VPP OUTPUT PEIZO SOUNDER DRIVER

PAM8904 Description

PAM8904 18VPP OUTPUT PIEZO SOUNDER DRIVER NC CP1 CN2 VO1 EN 1 EN2 DIN NC .
The DIODES™ PAM8904 is a piezo sounder driver with integrated charge pump boost converter.

PAM8904 Features

* thermal shutdown, over current protection, over voltage protection and under voltage lock-out. The PAM8904 is available in a 16-pin U-QFN3030-16 (Type B) package, or 12-pin U-QFN3030-12 (Type A) package. CN1 GND VO2 NC U-QFN3030-16 (Type B) Pin 1 (Top View) VIN CP2 VOUT CP1 CN2 VO1 EN 1 EN2 DIN

PAM8904 Applications

* Health care systems
* Alarm clocks
* Security devices
* Home appliances Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www. diodes. com/quality/lead-free/ for more information about Diode

📥 Download Datasheet

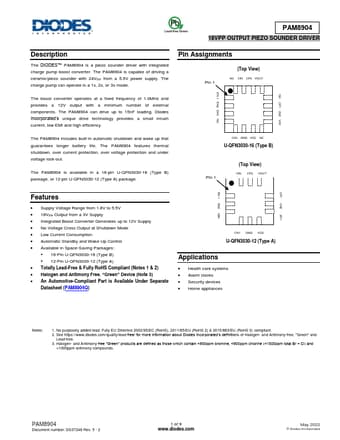

Preview of PAM8904 PDF
