SDT10100CT

10A TRENCH SCHOTTKY RECTIFIER

DIODES

SDT10100CT Features

* Low Forward Voltage Drop

* Excellent High Temperature Stability

* Soft, Fast Switching Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific change control (i.e. part

SDT10100CT General Description

and Applications Mechanical Data The SDT10100CT, SDT10100CTFP provides very low VF and extremely excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in:
* DC-DC converters
* AC-DC adaptors
* Package: TO220AB, .

SDT10100CT Datasheet (768.58 KB)

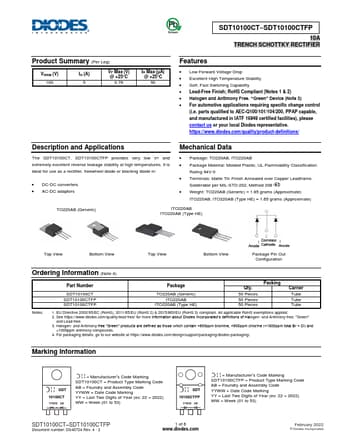

SDT10100CT Datasheet Preview — Preview of SDT10100CT PDF

Datasheet Details

Part number:

SDT10100CT

Manufacturer:

DIODES ↗

File Size:

768.58 KB

Description:

10a trench schottky rectifier.
SDT10100CT

*SDT10100CTFP Green 10A TRENCH SCHOTTKY RECTIFIER Product Summary (Per Leg) VRRM (V) 100 IO (A) 5 VF Max (V) @ +25°C 0.76 IR Ma.
