SDT100 Thyristor-Diode Modules

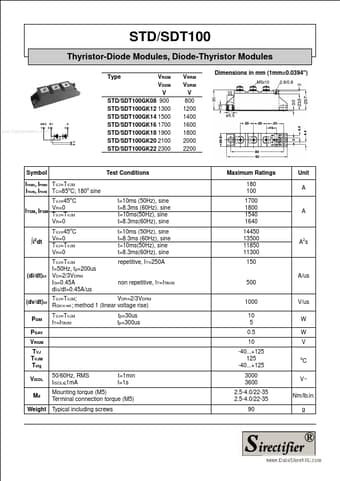

STD/SDT100 Thyristor-Diode Modules, Diode-Thyristor Modules Type VRSM VDSM V STD/SDT100GK08 900 STD/SDT100GK12 1300 STD/SDT100GK14 1500 STD/SDT100GK16 1700 STD/SDT100GK18 1900 STD/SDT100GK20 2100 STD/SDT100GK22 2300 VRRM VDRM V 800 1200 1400 1600 1800 2000 2200 Dimensions in mm (1mm=0.0394") www.DataSheet4U.com Symbol ITRMS, IFRMS TVJ=TVJM ITAVM, IFAVM TC=85oC; 180o sine TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=45oC VR=0 TVJ=TVJM VR=0 TVJ=TVJM f=50Hz, tp=200us VD=2/3VDRM IG=0.45A diG/dt=0.45A/us Test .

SDT100 Features

* International standard package

* Copper base plate

* Planar passivated chips

* Isolation voltage 3600 V~ APPLICATIONS

* DC motor control

* Softstart AC motor controller

* Light, heat and temperature control ADVANTAGES

* Space and weight savings

* Simple mounti
