SDT100-08, SDT100 Datasheet - HY

SDT100-08 THREE PHASE RECTIFIER BRIDGE

SDT100-08 Features

* Three phase bridge and a Thyristor

* Blocking voltage: 800 to 1600V

* Low forward voltage APPLICATIONS

* Three phase rectifiers for power supplies

* Inverter for AC or DC motor control

* Input rectifiers for variable frequency drives MECHANICAL DATA

* Mt to terminals (M5): 3±1

SDT100-HY.pdf

This datasheet PDF includes multiple part numbers: SDT100-08, SDT100. Please refer to the document for exact specifications by model.

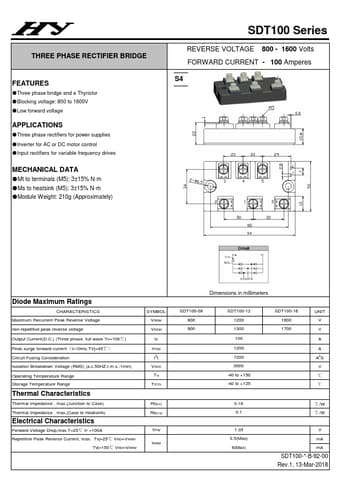

SDT100-08 Datasheet Preview Page 2 SDT100-08 Datasheet Preview Page 3

Datasheet Details

Part number:

SDT100-08, SDT100

Manufacturer:

HY

File Size:

792.47 KB

Description:

Three phase rectifier bridge.

Note:

This datasheet PDF includes multiple part numbers: SDT100-08, SDT100.
Please refer to the document for exact specifications by model.
