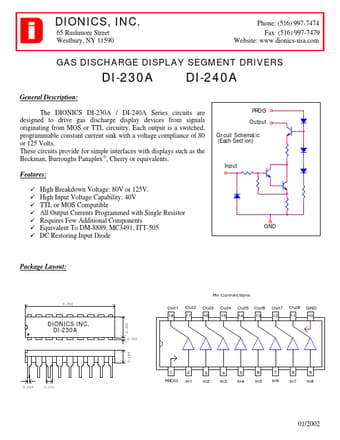

DI-240A GAS DISCHARGE DISPLAY SEGMENT DRIVERS

The DIONICS DI-230A / DI-240A Series circuits are designed to drive gas discharge display devices from signals originating from MOS or TTL circuitry. Each output is a switched, programmable constant current sink with a voltage compliance of 80 or 125 Volts. These circuits provide for simple interfa.

DI-240A Features

* ü ü ü ü ü ü ü High Breakdown Voltage: 80V or 125V. High Input Voltage Capability: 40V TTL or MOS Compatible All Output Currents Programmed with Single Resistor Requires Few Additional Components Equivalent To DM-8889, MC3491, ITT-505 DC Restoring Input Diode PROG Output Circuit Schematic (Each Sect
