DI-8884A

High Voltage Cathode Decoder/Driver

DI-8884A Features

* 9 9 9 9 9 9 9 Reliable Dielectric Isolation Process Current Sink Outputs High Output Breakdown Voltage Low Input Load Current Intended For Multiplex Operation Replacement For National DM-8884A Standard 18-pin DIP Package Package Layout: 0.900 ™ Truth Table Function 0 1 2 3 4 5 6 7 8 9 10 11 12 13

DI-8884A General Description

The DI-8884A is designed to decode four lines of BCD input and drive seven segment digits of gas-filled readout displays. Two separate inputs are provided for driving the decimal point and comma cathodes. All outputs consist of switchable and programmable current sinks, which provide constant curre.

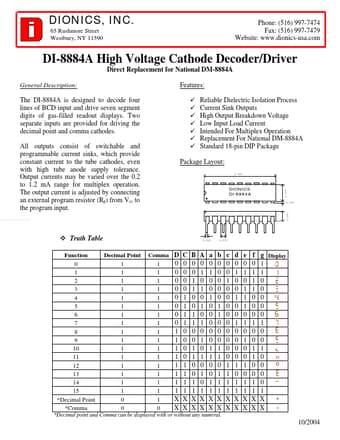

DI-8884A Datasheet (71.26 KB)

Preview of DI-8884A PDF

Datasheet Details

Part number:

DI-8884A

Manufacturer:

Dionics

File Size:

71.26 KB

Description:

High voltage cathode decoder/driver.
DIONICS, INC. 65 Rushmore Street Westbury, NY 11590 Phone: (516) 997-7474 Fax: (516) 997-7479 Website: www.dionics-usa.com DI-8884A High Voltage Cat.
