DI-505B Datasheet - DIONICS

DI-505B - LEVEL-SHIFTED GAS DISCHARGE DISPLAY DIGIT DRIVERS

The DIONICS DI-505B and DI-510B series circuits are designed for interfacing between MOS or TTL circuitry and gas discharge display panels.

Each section of these devices is made up of a switched constant current level shifter-capable of high voltage operation and a PNP-NPN driver transistor pair.

T

DI-505B Features

* ü ü ü ü ü 200V Level Shift Capability MOS and TTL Compatibility 6- and 8-line Versions Low Power Dissipation Reliable Dielectric Isolation Process Package Layout: DI-505B 0.800 Circuit Schematic (Each Section) V+ Input Output DI-510B 0.900 DIONICS INC. DI-505B DIONICS INC DI-510B 0.250 0.0

DI-505B-DIONICS.pdf

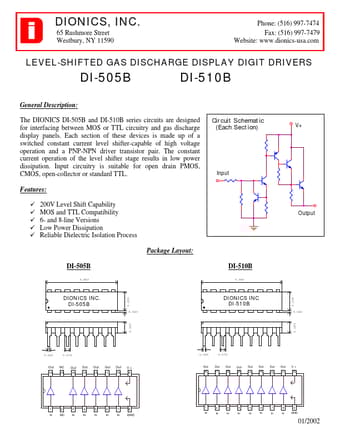

Preview of DI-505B PDF
DI-505B Datasheet Preview Page 2

Datasheet Details

Part number:

DI-505B

Manufacturer:

DIONICS

File Size:

50.50 KB

Description:

Level-shifted gas discharge display digit drivers.
