DIO20721

RRIO 10MHz Amplifier

DIO20721 Features

* Rail-to-Rail Input and Output

* 0.5mV Typical offset (VOS)

* Low Distortion

* Gain Bandwidth Product: 10MHz

* Wide supply range: 2.5V to 5.5V

* 620μA/Amplifier typical supply current

* Slew rate: 6.5V/µs

* DIO20721 available in SC70-5, SOT23-5 DIO20721D available in

DIO20721 General Description

The DIO2072x is a single/dual/quad channel, rail-to-rail I/O operational amplifier which allows low load impedances to be driven. With a 10MHz unity-gain frequency and low noise, low distortion and high output current capability, the DIO2072x provides excellent choice for high quality systems. The .

DIO20721 Datasheet (517.12 KB)

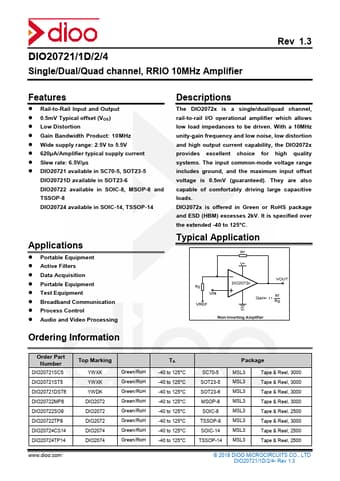

Preview of DIO20721 PDF

Datasheet Details

Part number:

DIO20721

Manufacturer:

DIOO MICROCIRCUITS

File Size:

517.12 KB

Description:

Rrio 10mhz amplifier.
