DIO20721D, DIO20721 RRIO 10MHz Amplifier

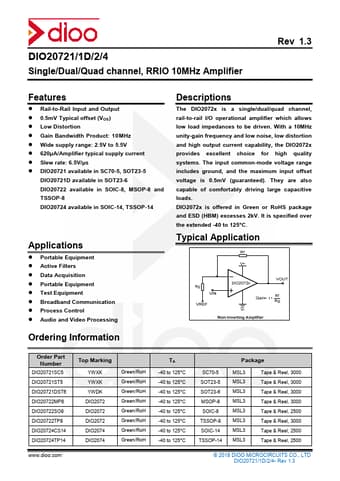

📥 Download Datasheet  Datasheet Preview Page 1

Description

DIO20721/1D/2/4 Single/Dual/Quad channel, RRIO 10MHz Amplifier Rev 1.3 .
The DIO2072x is a single/dual/quad channel, rail-to-rail I/O operational amplifier which allows low load impedances to be driven.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DIO20721D, DIO20721. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DIO20721D, DIO20721
Manufacturer
DIOO MICROCIRCUITS
File Size
517.12 KB
Datasheet
DIO20721-DIOOMICROCIRCUITS.pdf
Description
RRIO 10MHz Amplifier
Note
This datasheet PDF includes multiple part numbers: DIO20721D, DIO20721.
Please refer to the document for exact specifications by model.

Features

* Rail-to-Rail Input and Output
* 0.5mV Typical offset (VOS)
* Low Distortion
* Gain Bandwidth Product: 10MHz
* Wide supply range: 2.5V to 5.5V
* 620μA/Amplifier typical supply current
* Slew rate: 6.5V/µs
* DIO20721 available in SC70-5, SOT23-5 DIO20721D available in

Applications

* Portable Equipment
* Active Filters
* Data Acquisition
* Portable Equipment
* Test Equipment
* Broadband Communication
* Process Control
