DIO20724, DIO20721 Datasheet - DIOO MICROCIRCUITS

DIO20724, DIO20721, RRIO 10MHz Amplifier

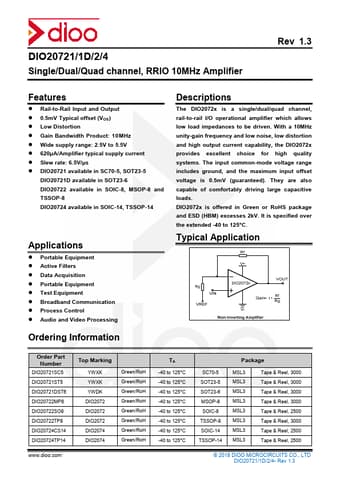

DIO20721/1D/2/4 Single/Dual/Quad channel, RRIO 10MHz Amplifier Rev 1.3 .
The DIO2072x is a single/dual/quad channel, rail-to-rail I/O operational amplifier which allows low load impedances to be driven.

DIO20721-DIOOMICROCIRCUITS.pdf

DIO20724 Datasheet Preview — This datasheet PDF includes multiple part numbers: DIO20724, DIO20721. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DIO20724, DIO20721

Manufacturer:

DIOO MICROCIRCUITS

File Size:

517.12 KB

Description:

RRIO 10MHz Amplifier

Note:

This datasheet PDF includes multiple part numbers: DIO20724, DIO20721.
Please refer to the document for exact specifications by model.

Features

* Rail-to-Rail Input and Output
* 0.5mV Typical offset (VOS)
* Low Distortion
* Gain Bandwidth Product: 10MHz
* Wide supply range: 2.5V to 5.5V
* 620μA/Amplifier typical supply current
* Slew rate: 6.5V/µs
* DIO20721 available in SC70-5, SOT23-5 DIO20721D available in

Applications

* Portable Equipment
* Active Filters
* Data Acquisition
* Portable Equipment
* Test Equipment
* Broadband Communication
* Process Control
