DIO8244 Adaptive 100/120Hz Current Ripple Remover

DIO8244 is a regulator for driving internal NMOSFET to remove the 100/120Hz LED string current ripple on AC/DC power. Patented control strategies are optimized for remover current ripple. Nover circuit design makes a lower BOM and high cost-effective for flickerless filament. Applications * LE.

DIO8244 Features

* Regulator for adaptive 100/120Hz current ripple remove

* Built-in zener diode for input voltage clamping

* Built-in 500V power MOSFET

* Programmable amplitude LED current ripple

* Programmable maximum cathode voltage of LED

* Programmable maximum LED current

* Optimized

DIO8244-DIOOMICROCIRCUITS.pdf

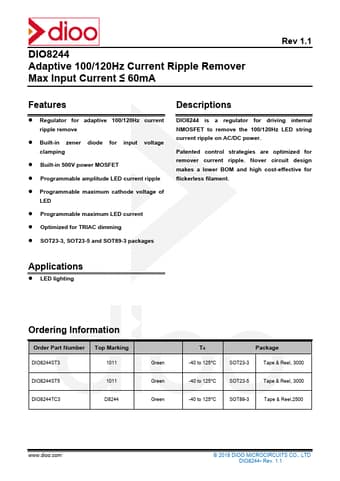

DIO8244 Datasheet Preview — Preview of DIO8244 PDF

Datasheet Details

Part number:

DIO8244

Manufacturer:

DIOO MICROCIRCUITS

File Size:

384.74 KB

Description:

Adaptive 100/120hz current ripple remover.
