DIO8269

Dimming Interface Converter

DIO8269 Features

* Compatible with 0/1~10 V dimming, resistor dimming, and PWM dimming

* Recognize different dimming signals automatically

* Integrate 60 V LDO module to simplify the external circuit

* The source current for passive 0/1~10 V dimmer can be set

* The frequency of output can be set

DIO8269 General Description

The DIO8269 is a dimming interface converter that can recognize its input signal, which can be a 0/1~10 V dimming signal, resistor, or PWM signal. To achieve isolated dimming, the final output of the DIO8269, which is a PWM signal, is used to control a dimmable CC regulator or drive an opto-coupler..

DIO8269 Datasheet (1.09 MB)

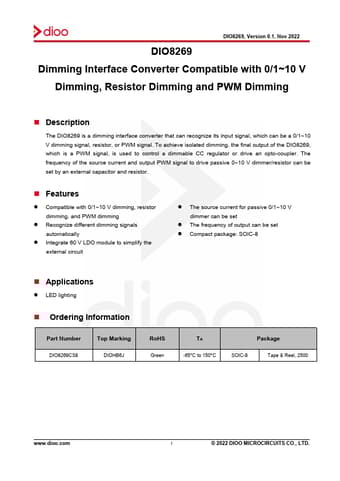

Preview of DIO8269 PDF

Datasheet Details

Part number:

DIO8269

Manufacturer:

DIOO MICROCIRCUITS

File Size:

1.09 MB

Description:

Dimming interface converter.
DIO8269, Version 0.1, Nov 2022 DIO8269 Dimming Interface Converter Compatible with 0/1~10 V Dimming, Resistor Dimming and PWM Dimming
* Descripti.
