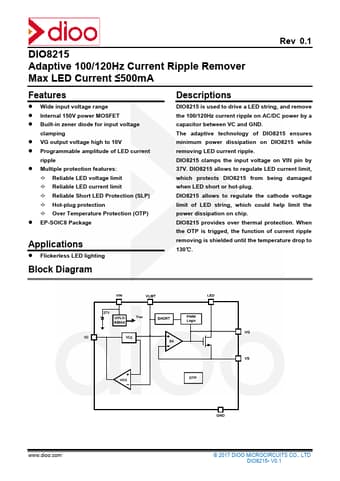

DIO8215

Adaptive 100/120Hz Current Ripple Remover

DIO8215 Features

* Wide input voltage range Internal 150V power MOSFET Built-in zener diode for input voltage clamping VG output voltage high to 10V Programmable amplitude of LED current ripple Multiple protection features: Reliable LED voltage limit Reliable LED current limit Reliable Short LED Protection (SLP) Hot-p

DIO8215 General Description

DIO8215 is used to drive a LED string, and remove the 100/120Hz current ripple on AC/DC power by a capacitor between VC and GND. The adaptive technology of DIO8215 ensures minimum power dissipation on DIO8215 while removing LED current ripple. DIO8215 clamps the input voltage on VIN pin by 37V. DIO.

DIO8215 Datasheet (632.58 KB)

Preview of DIO8215 PDF

Datasheet Details

Part number:

DIO8215

Manufacturer:

DIOO MICROCIRCUITS

File Size:

632.58 KB

Description:

Adaptive 100/120hz current ripple remover.
