DTC34LR86L, DTC34LF86L, +3.3V LVDS 24Bit Flat Panel Display (FPD) Receiver

DTC34LF8 6L/DTC34LR86L LVDS Product DTC34LF86L/DTC34LR86L (Rev.2.2) +3.3V LVDS 24Bit Flat Panel Display (FPD) Receiver - 85MHz General .
The D TC34LF86L/LR86L rec eivers co nvert the L VDS (Low Voltage Differential Signaling) data streams back into 28 bit s of CMOS/ TTL dat a with falli.

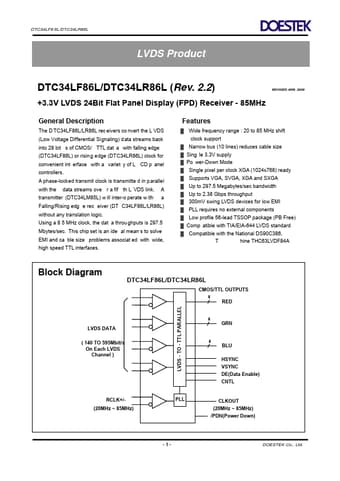

datasheet Preview Page 1 from Datasheet4u.com

DTC34LF86L-DOESTEK.pdf

DTC34LR86L Datasheet Preview — This datasheet PDF includes multiple part numbers: DTC34LR86L, DTC34LF86L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTC34LR86L, DTC34LF86L

Manufacturer:

DOESTEK

File Size:

234.40 KB

Description:

+3.3V LVDS 24Bit Flat Panel Display (FPD) Receiver

Note:

This datasheet PDF includes multiple part numbers: DTC34LR86L, DTC34LF86L.
Please refer to the document for exact specifications by model.

Features

* ▓ Wide frequency range : 20 to 85 MHz shift clock support Narrow bus (10 lines) reduces cable size ▓ Sing le 3.3V supply ▓ Po wer-Down Mode ▓ ▓ ▓ ▓ ▓ ▓ ▓ ▓ Single pixel per clock XGA (1024x768) ready Supports VGA, SVGA, XGA and SXGA Up to 297.5 Megabytes/sec bandwidth Up to 2.38 Gbps throughput 3
