IL9171 Datasheet - DOLD

IL9171 Undervoltage relay

0223313 Monitoring technique Undervoltage relay IK 9171, IL 9171, SK 9171, SL 9171, 3-phase varimeter IK 9171 SK 9171 According to IEC/EN 60 255, DIN VDE 0435-303 Devices available in 2 enclosure versions: I-model: depth 59 mm, with terminals at the bottom for installation systems and industrial distribution systems according to DIN 43 880 S-model: depth 98 mm, with terminals at the top for cabinets with mounting plate and cable duct Monitoring of undervoltage .

IL9171 Datasheet (101.65 KB)

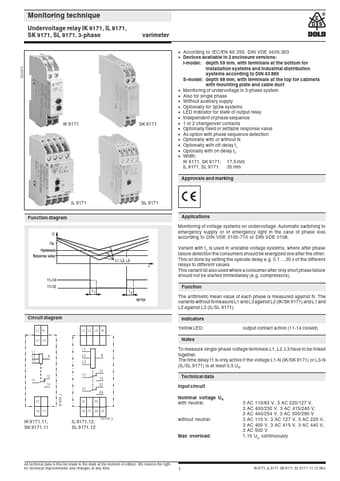

Preview of IL9171 PDF
IL9171 Datasheet Preview Page 2

Datasheet Details

Part number:

IL9171

Manufacturer:

DOLD

File Size:

101.65 KB

Description:

Undervoltage relay.
