IL91210EN TONE/PULSEDIALER

IL91210EN TONE/PULSEDIALER The IL91210EN is a single-chip, silicon gate, CMOS integrated circuit with an on-chip oscillator for a 3.58 MHz crystal or ceramic resonator. It provides dialing pulse (DP) or dual tone multi-frequency (DTMF) dialing. A standard 4x4 matrix keyboard can be used to support either DP or DTMF modes. Up to 32 digits can be saved in the on-chip RAM for reading. In the DTMF mode, minimum tone duration and minimum intertone pause are provided for rapid dialing. Maximum tone du.

IL91210EN Datasheet (42.72 KB)

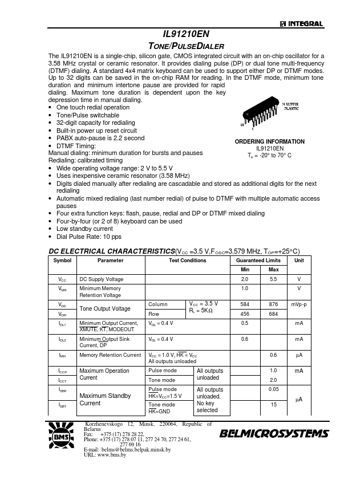

Preview of IL91210EN PDF
IL91210EN Datasheet Preview Page 2 IL91210EN Datasheet Preview Page 3

Datasheet Details

Part number:

IL91210EN

Manufacturer:

ETC

File Size:

42.72 KB

Description:

Tone/pulsedialer.
